Jaw Plate China: Why Jaw Plates Wear Fast and How to Choose the Right One for PE400×900 and CMD109 Crushers
In mining and aggregate production, jaw plate wear is one of the most common problems. Many operators find that jaw plates wear out too fast, crack during operation, or need frequent replacement. These issues increase downtime and directly affect production efficiency.
If you are searching for jaw plate china, you are likely trying to solve these exact problems. TangShan Polarislink Advanced Materials Technology Co.,Ltd. focuses on manufacturing durable jaw plate solutions for global customers. With optimized material design and strict quality control, we help reduce wear and improve crusher performance. More information is available at www.polarislink.net.
Why Do Jaw Plates Wear So Fast
Jaw plate wear is mainly caused by three factors: material, working condition, and design. When crushing high hardness materials such as granite, basalt, or iron ore, standard jaw plates often cannot handle strong abrasion. This leads to rapid wear and short service life.
In low temperature environments, such as Russia and Central Asia, jaw plates may crack due to insufficient toughness. Uneven feeding or poor tooth design can also cause uneven wear, especially between the upper and lower sections of the jaw plate. These are the main reasons why many users frequently search for jaw plate replacement.
How to Choose the Right Jaw Plate China Supplier
Choosing the right jaw plate china supplier is not just about price. It is about matching the product to actual working conditions. For general crushing, Mn13 jaw plate is commonly used, while Mn18 jaw plate performs better in high abrasion environments.
For more demanding conditions, alloy optimization is necessary. Adding chromium and molybdenum can improve wear resistance, while better toughness helps prevent cracking. At Polarislink, material composition is adjusted according to real working conditions instead of using a fixed standard formula.

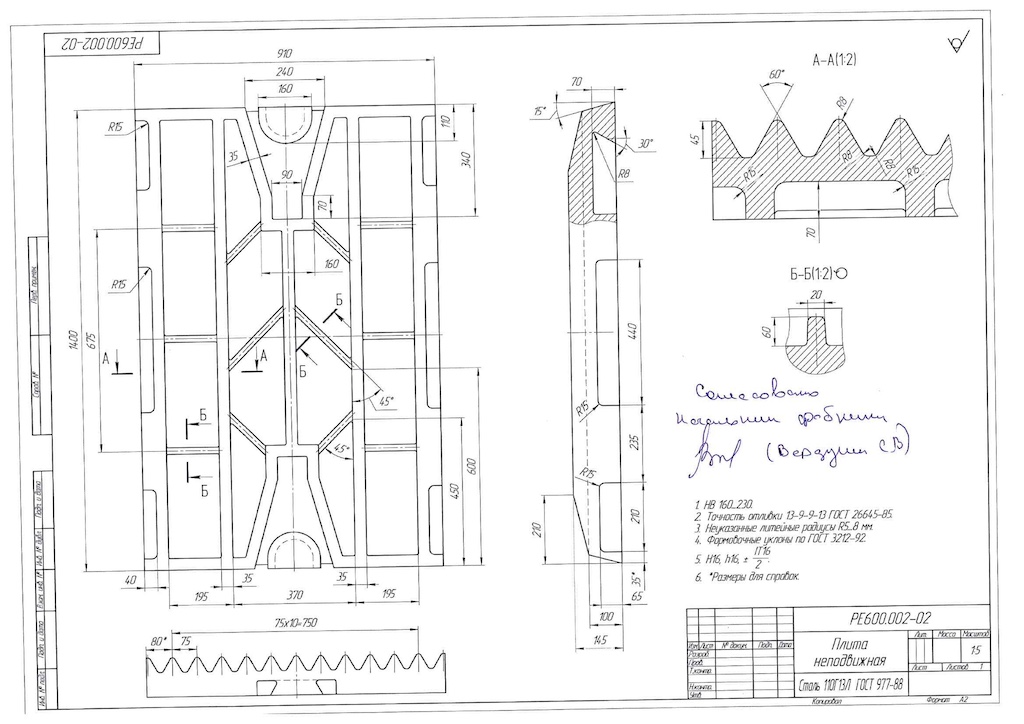

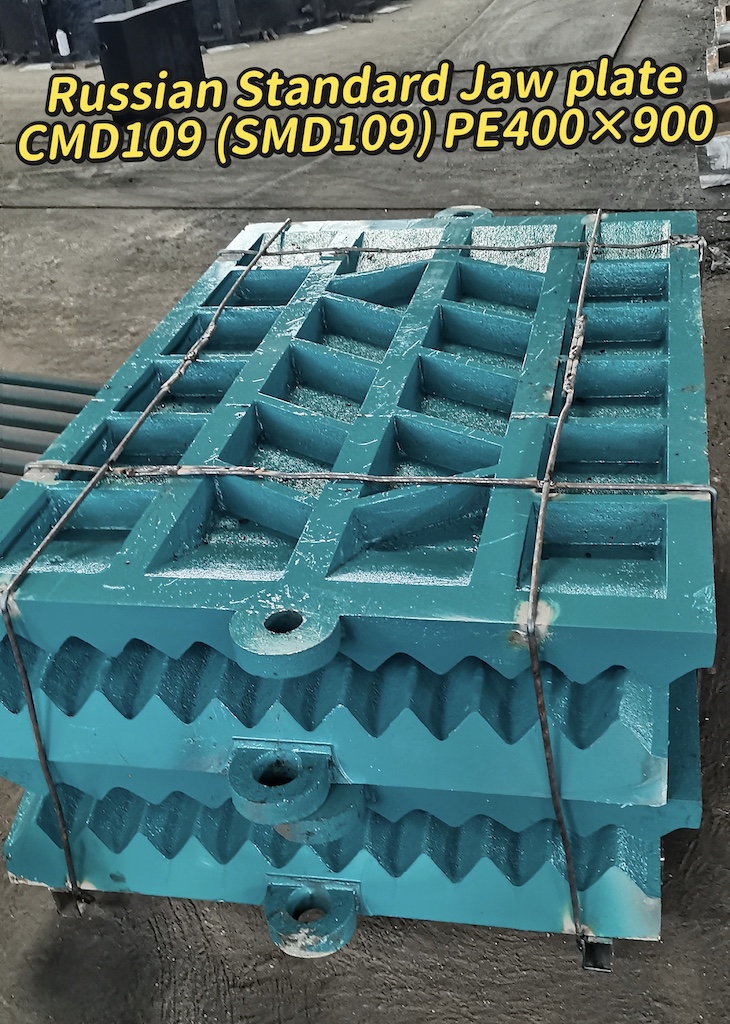

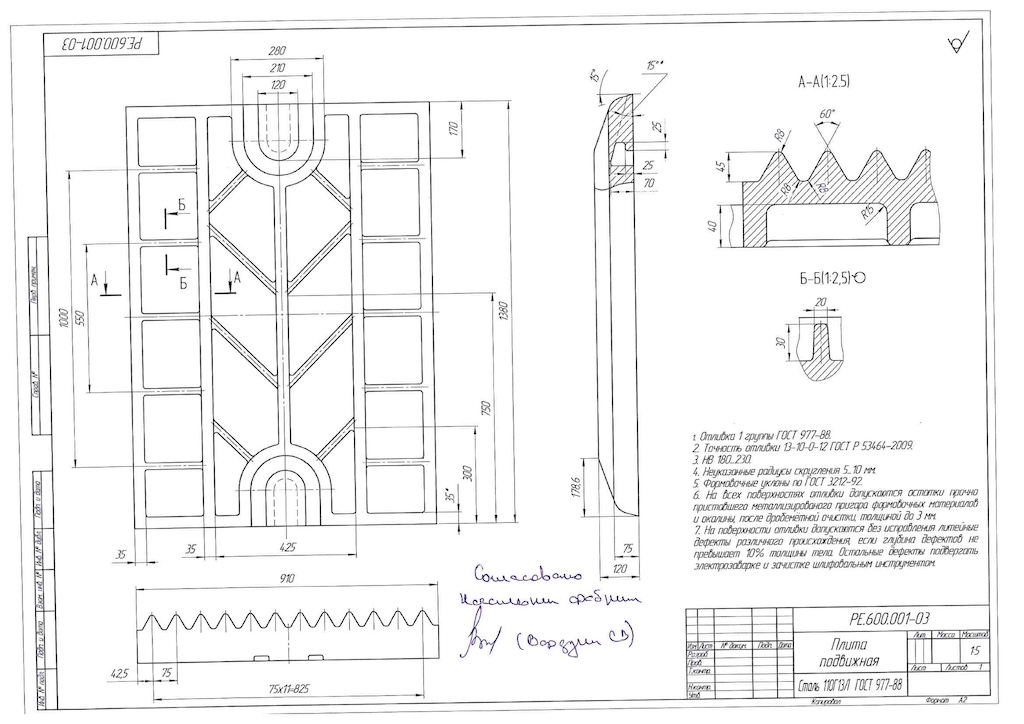

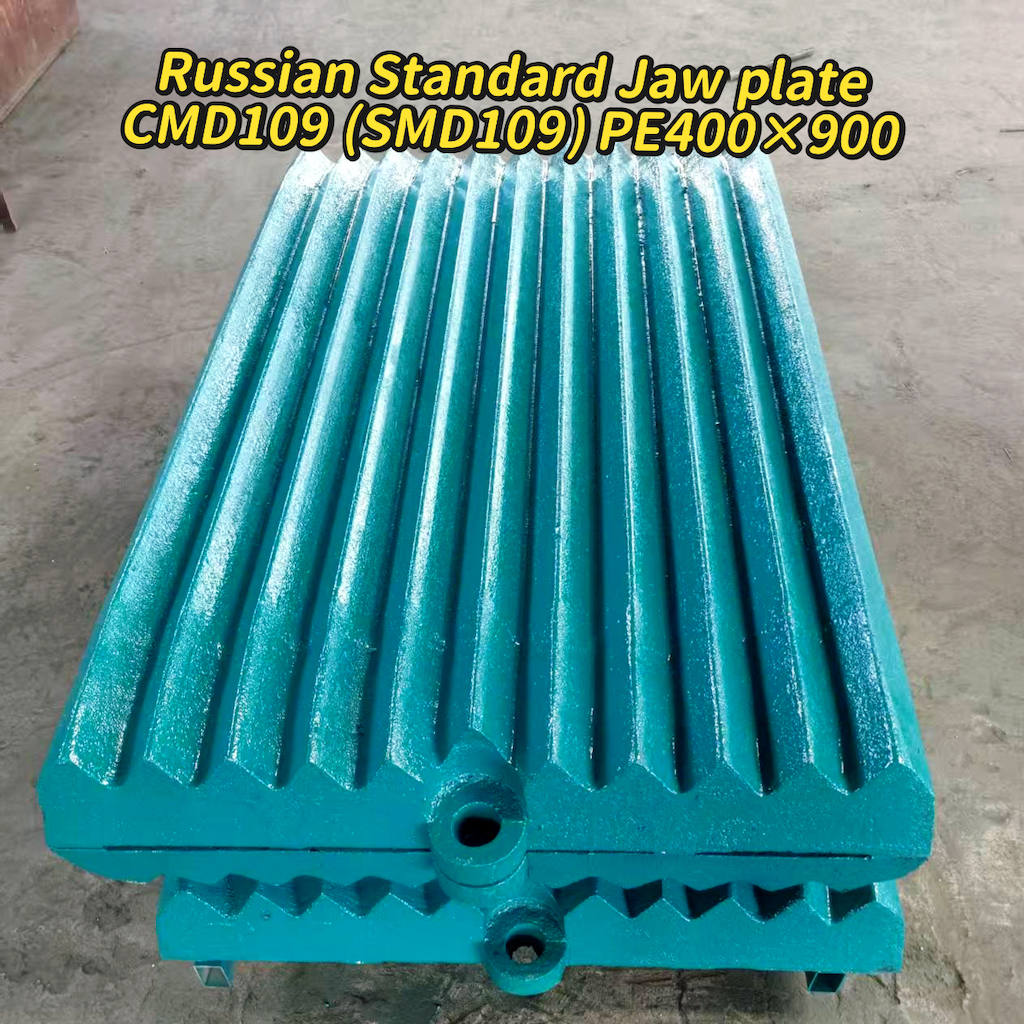

Jaw Plate for PE400×900 and CMD109 Crushers
PE400×900 jaw plate is widely used in small and medium crushing lines. It requires stable performance, balanced wear, and reliable impact resistance. CMD109 jaw plate is commonly used in Russian markets, where working conditions are often more demanding because of hard materials and low temperatures.
For these models, customized jaw plates usually perform better than standard ones. An optimized tooth profile improves crushing efficiency and reduces slipping during operation. Symmetrical design can also allow flipping use, which increases utilization and extends service life.
Heat Treatment and Quality Control
Material alone is not enough. Heat treatment also plays a critical role in jaw plate performance. Through controlled water quenching, the internal metallographic structure becomes more refined and uniform, helping the plate maintain a better balance between hardness and impact resistance.
At Polarislink, each batch is inspected through chemical analysis, metallographic testing, and hardness testing. This helps ensure stable quality and consistent performance in actual crushing work.
When Should You Replace Jaw Plates
Jaw plate replacement is necessary when wear starts affecting crushing efficiency. If cracks appear on the surface, replacement should not be delayed. Uneven wear can also lead to unstable operation and should be corrected in time.
Replacing jaw plates at the right time can prevent further damage to the crusher and reduce unexpected downtime. For many operators, timely replacement is just as important as choosing the right material.
Real Case: Solving Jaw Plate Wear in Russia
A customer using CMD109 jaw crushers in Russia faced serious jaw plate wear and cracking problems while crushing granite. Because the material contained high quartz content and the environment remained at low temperature for long periods, their original jaw plates failed quickly.
After switching to customized jaw plate china solutions from Polarislink, the wear rate decreased significantly. No cracking occurred in low temperature conditions, and the service life increased more than two times. Maintenance frequency was reduced, which helped improve overall production efficiency.
Why Customized Jaw Plate China Is Better
Standard jaw plates are designed for general conditions, but actual working environments vary from one customer to another. Material hardness, temperature, crusher model, and production requirements all affect service life and performance.
Customized jaw plate china solutions consider these real factors. This leads to longer service life, fewer replacements, and lower long term cost. For buyers who want stable operation instead of repeated shutdowns, customization brings more practical value.
Conclusion
Jaw plate wear is a common but solvable problem. By choosing the right material, design, and supplier, users can significantly improve crushing performance and reduce downtime.
TangShan Polarislink Advanced Materials Technology Co.,Ltd. provides reliable jaw plate china solutions for PE400×900 and CMD109 crushers. Visit www.polarislink.net to learn more.
